Horizon Drilling

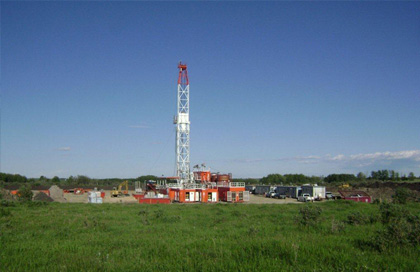

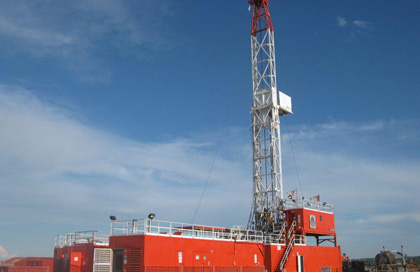

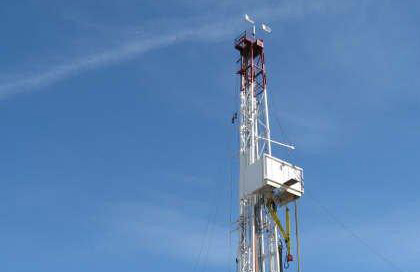

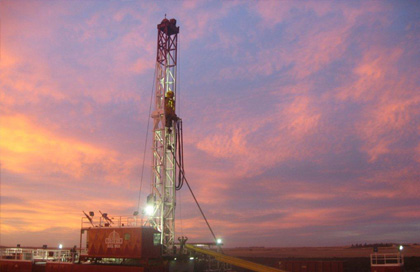

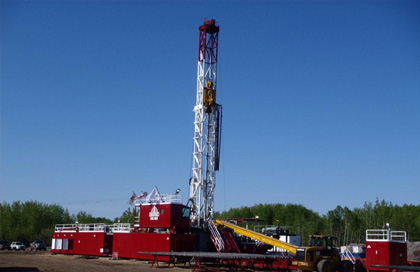

Horizon Drilling's fleet in Canada consists of 52 Efficient Long Reach (ELR) drilling rigs with depth capacities ranging from 2,200 to 5,500 meters.  Horizon's fleet has rig classifications for Cardium, Montney and Duvernay class rigs. Horizon's newest rig is a 600K Duvernay AC Triple Pad rig with depth capacity (TVD) of 5,500 metres (18,000') and a high-pressure circulating system rated for 52,000 kPa (7,500 psi).  Click on the video here to see an animation of this rig and its moving system capabilities.

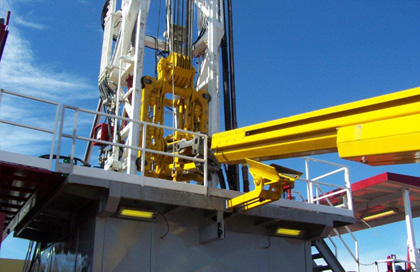

Horizon Drilling has an in-house project management team that works closely with operations personnel and fabrication experts to design Horizon's safe, efficient and highly versatile fleet. These drilling rigs can include features such as AC power, top drive, dual fuel, automated pipe handling, automated cat walk, floor robot, hydraulic substructure levelling, hydraulic BOP handling and Range III tubulars.

Rig Specifications

Rig Type TVD (m)
Rig 1 Telescopic Double 3,600
Rig 2 Telescopic Double 4,000
Rig 3 Telescopic Double 4,000
Rig 4 Telescopic Double 4,500
Rig 5 Telescopic Double 4,500
Rig 7 Telescopic Single 3,200
Rig 8 Telescopic Single 3,200
Rig 9 Telescopic Single 3,200
Rig 10 Cantilever Triple 4,500
Rig 11 Cantilever Triple 4,500
Rig 12 Telescopic Single 3,200
Rig 14 Telescopic Double 4,500
Rig 15 Stiff Single 2,200
Rig 16 Telescopic Single 3,200
Rig 17 Telescopic Single 3,200
Rig 18 Telescopic Single 3,200
Rig 19 Telescopic Double 4,500
Rig 20 Telescopic Double 3,600
Rig 21 Telescopic Double 4,500
Rig 22 Telescopic Double 4,500
Rig 23 Telescopic Double 4,500
Rig 24 Telescopic Double 3,600
Rig 25 Telescopic Double 3,300
Rig 26 Telescopic Double 3,600
Rig 27 Telescopic Double 3,600
Rig 28 Telescopic Double 3,600
Rig Type TVD (m)
Rig 29 Telescopic Double 3,600
Rig 30 Telescopic Double 4,500
Rig 31 Telescopic Double 3,300
Rig 32 Telescopic Double 3,300
Rig 33 Telescopic Double 3,600
Rig 34 Telescopic Double 3,300
Rig 35 Telescopic Double 3,300
Rig 36 Telescopic Double 3,600
Rig 37 Telescopic Double 4,500
Rig 38 Telescopic Triple 5,000
Rig 39 Telescopic Double 3,600
Rig 40 Telescopic Triple 5,000
Rig 41 Telescopic Double 4,500
Rig 42 Telescopic Double 3,600
Rig 43 Telescopic Double 4,500
Rig 44 Telescopic Double 4,000
Rig 45 Telescopic Double 4,000
Rig 46 Telescopic Double 5,000
Rig 47 Telescopic Double 5,000
Rig 48 Telescopic Double 5,000
Rig 49 Telescopic Double 4,000
Rig 50 Telescopic Double 4,000
Rig 51 Telescopic Double Pad 4,500
Rig 52 Telescopic Double Pad 4,500
Rig 55 AC Tele Triple Pad 6,000
Rig 61 Telescopic Single 2,200
